At SGC we offer a cost-effective Aluminum disposable calibration & Pure Gases gas cylinder, for low calibration gas volume applications.Our mixtures are NIST traceable to guarantee the accuracy, optimum stability and maximum shelf-life of these calibration gas mixtures.

In SGC we blend many different types of mixtures in disposable cylinders for use of checking and calibrating the function of detectors and instruments used in following applications:

  • Environmental monitoring
  • Flammable Gas detection
  • Health & Safety Monitoring for Gas Detection
  • Function Testing of Gas Equipment and Monitors
  • Automotive Exhaust Emission Standards
  • Ambient Air Monitoring Standards
  • Low Level NO & NO2 Mixtures
  • Total in house manufacture affording available of extensive range of standard and custom mixtures.
  • Broad range of standard gas mixtures held in stock for immediate availability.
  • SGC use Aluminum disposable cylinders suitable for reactive and non reactive gas mixtures.
  • Blended gravimetrically for maximum accuracy.
  • Comprehensive range of complimentary, easy to use gas handling equipment and accessories immediate available.
  • Cylinders are compliant with appropriate Department of Transport, USA (DOT) 39 NRC.

Aluminium Disposable Cylinder Technical Details

Cylinder Capacity (Litres) 58
Pressure (Bar/PSI) 34/500
Length (mm) 362
Diameter (mm) 89
Empty Weight (Kg) 0.72
Water Capacity (Litres) 1.72
Material Aluminum Alloy
Standard DOT 39 NRC
Valve Outlet 5/8" 18 UNF (C10)
Gas Type Reactive/ Non-Reactive
Cylinder Type Disposable

Non-Reactive Single Component Mixtures

BENZENE
Range: 1-5 ppm
Balance: Air
Base Code: DF23456 		BUTANE
Range:10 ppm-0.9% vol.
Balance: Air
Base Code: DF23456 		CARBON DIOXIDE
Range:50 ppm-100% vol.
Balance: Air or N2
Base Code: DF23456
CARBON MONOXIDE
Range:10-2000 ppm.
Balance: Air or N2
Base Code: DF23456 		ETHYLENE
Range: 10 ppm-1.35% vol.
Balance: Air
Base Code: DF23456 		HELIUM
Range: 100% vol.
Base Code: DF23456
HEXANE
Range:10 ppm-0.48% vol.
Balance: Air
Base Code: DF23456 		HYDROGEN
Range:10 ppm-2.0% vol.
Balance: Air or N2
Base Code: DF23456 		ISOBUTYLENE
Range:10-250 ppm
Balance: Air
Base Code: DF23456
METHANE
Range: 10 ppm-2.5% vol.
Balance: Air or N2
Base Code: DF23456 		METHYL CHLORIDE
Range: 10-300 ppm
Balance: Air or N2
Base Code: DF23456 		NITROGEN
Range: 100% vol.
Base Code: DF23456
OXYGEN
Range: 0.4-100% vol.
Balance: Nitrogen
Base Code: DF23456 		PENTANE
Range: 10 ppm-0.75% vol.
Balance: Air
Base Code: DF23456 		PROPANE
Range: 10 ppm-1.1% vol.
Balance: Air
Base Code: DF23456
PROPYLENE
Range: 50 ppm-5.6% vol.
Balance: Nitrogen
Base Code: DF23456 		TOLUENE
Range: 10-150 ppm
Balance: Air
Base Code: DF23456 		ZERO AIR
Range: 20.9%
Balance: OXGYEN / Nitrogen
Base Code: DF23456

"Still can't find what you need in above table, please call us on +966-13-3419361 or email us at sales@sgcgas.com we will find it for you !"

Non-Reactive Multi Component Mixtures

Base Code CARBON MONOXIDE METHANE PENTANE OXYGEN BALANCE
DF2356 250 PPM 50% LEL     Air
DF2356 50 PPM 50% LEL     Air
DF2356 50 PPM 50% LEL   18% Nitrogen
DF2356   20% LEL   19% Nitrogen
DF2356 200 PPM 50% LEL     Air
DF2356 200 PPM 50% LEL   19% Nitrogen
DF2356 100 PPM   25% LEL 19% Nitrogen
DF2356     25% LEL 19% Nitrogen
DF2356 100 PPM 20% LEL     Nitrogen
DF2356   1.45% 58% LEL* 15.0% Nitrogen
DF2356 60 PPM 1.45% 58% LEL* 15.0% Nitrogen
DF2356 50 PPM 50% LEL   17.0% Nitrogen
DF2356 50 PPM 50% LEL   12.0% Nitrogen
DF2356 100 PPM 50% LEL   17.0% Nitrogen
DF2356 35 PPM   10% LEL 18.0% Nitrogen
DF2356 35 PPM 10% LEL 10 PPM 18.0% Nitrogen
DF2356 50 PPM   10% LEL 18.0% Nitrogen
DF2356   50% LEL   18.0% Nitrogen
DF2356 35 PPM 10% LEL 10 PPM 18.0% Nitrogen
DF2356 50 PPM   10% LEL 18.0% Nitrogen
DF2356   50% LEL   18.0% Nitrogen
DF2356 100 PPM 24% LEL     Air
DF2356 50 PPM   25% LEL   Air
DF2356 35 PPM 30% LEL   18.5% Nitrogen

"Still can't find what you need in above table, please call us on +966-13-3419361 or email us at sales@sgcgas.com we will find it for you !"

Reactive Single Component Mixtures

AMMONIA
Range: 10-500 ppm
Balance: Air or N2
Base Code: DF23456 		CHLORINE
Range: 2-1000 ppm
Balance: Nitrogen
Base Code: DF23456 		ETHYLENE OXIDE
Range: 3-1000 ppm
Balance: Nitrogen
Base Code: DF23456
HYDROGEN CHLORIDE
Range: 3-1000 ppm
Balance: Nitrogen
Base Code: DF23456 		HYDROGEN CYANIDE
Range: 5-20 ppm
Balance: Nitrogen
Base Code: DF23456 		HYDROGEN SULFIDE
Range:5ppm-1.0% vol.
Balance: Air or N2
Base Code: DF23456
NITRIC OXIDE
Range: 5-1000 ppm
Balance: Nitrogen
Base Code: DF23456 		NITROGEN DIOXIDE
Range: 3-200 ppm
Balance: Air or N2
Base Code: DF23456 		SULFUR DIOXIDE
Range: 2-100 ppm
Balance: Air or N2
Base Code: DF23456

"Still can't find what you need in above table, please call us on +966-13-3419361 or email us at sales@sgcgas.com we will find it for you !"

Reactive Multi Component Mixtures

Base Code CO CH4 PENTANE H2S O2 BALANCE
B234619 50 PPM 1.62% 50%LEL 25 PPM 18% Nitrogen
B234619 100 PPM 50% LEL   25 PPM 20.8% Nitrogen
B234619 50 PPM 50% LEL   25 PPM 12.0% Nitrogen
B234619     25% LEL 25 PPM 19.0% Nitrogen
B234619 100 PPM   25% LEL 25 PPM 19.0% Nitrogen
B234619 50 PPM 50% LEL   25 PPM 20.9% Nitrogen
B234619 300 PPM 1.45% 58% LEL 10 PPM 15.0% Nitrogen
B234619 250 PPM 50% LEL   40 PPM 21.0% Nitrogen
B234619 95 PPM 30% LEL   25 PPM 19.0% Nitrogen
B234619 100 PPM 50% LEL   25 PPM 18.0% Nitrogen
B234619 35 PPM   10% LEL 10 PPM 18.0% Nitrogen
B234619 50 PPM 50% LEL Sulfur Dioxide 10 PPM 20.9% Nitrogen
B234619 35 PPM 10% LEL   10 PPM 18.0% Nitrogen

"Still can't find what you need in above table, please call us on +966-13-3419361 or email us at sales@sgcgas.com we will find it for you !"

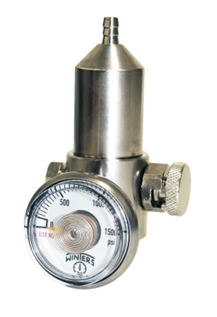

SGC Lite Disposable Cylinder Regulators

Brass and Stainless Steel Preset Flow Rate Regulators

Preset flow regulators for use with SGC Lite Disposable cylinders.

Features:
  • Brass or Stainless Steel Bodies
  • Brass piston or Stainless steel piston
  • Push button on/off mechanism
  • 3/16" Hose bard outlet
  • 0.5LPM or 1LPM standard Preset flow rate.
  • 30 psig delivery pressure.
We also have brass and stainless steel Variable Flow regulators.
0.5 LPM
Brass
Base Code: LITE-RBC05 		1.0 LPM
Brass
Base Code: LITE-RBC05 		0-3 LPM
Brass
Base Code: LITE-RBC05
0.5 LPM
Stainless Steel
Base Code: LITE-RBC05 		1.0 LPM
Stainless Steel
Base Code: LITE-RBC05 		0-3 LPM
Stainless Steel
Base Code: LITE-RBC05


SGC Lite Disposable Cylinder Carry Cases

Brass and Stainless Steel Preset Flow Rate Regulators


Carry cases are ideal for safety, storing and transporting Disposable Gas cylinder and regulators.

  • Can carry 3 SGC Lite disposable cylinders.
  • Light weight and easy to carry.
  • Side pockets to keep the accessories, like regulator, tygon    tubing etc.
We also have brass and stainless steel Variable Flow regulators.

Carry Case
Base Code:LITE-RBC05


Tygon Tubing for Calibration Flow Rate Regulators

Tygon tubing is crystal clear, flexible and superior in quality to provide a longer life and greater versatility than other plastic tubing.

Tygon Tubing
Base Code: LITE-TT03

"Still can't find what you need in above table, please call us on +966-13-3419361 or email us at sales@sgcgas.com we will find it for you !"

Cylinder Disposal/Return Program:

For disposal of used or expired cylinders, please call us or send your disposable cylinders on below given address. We disposal cylinder free of cost. We can also collect these disposable cylinders for disposal during the supply free of cost.

Call us on: +966-13-3419361 Or send at our factory address.
